Ultra-Low Series

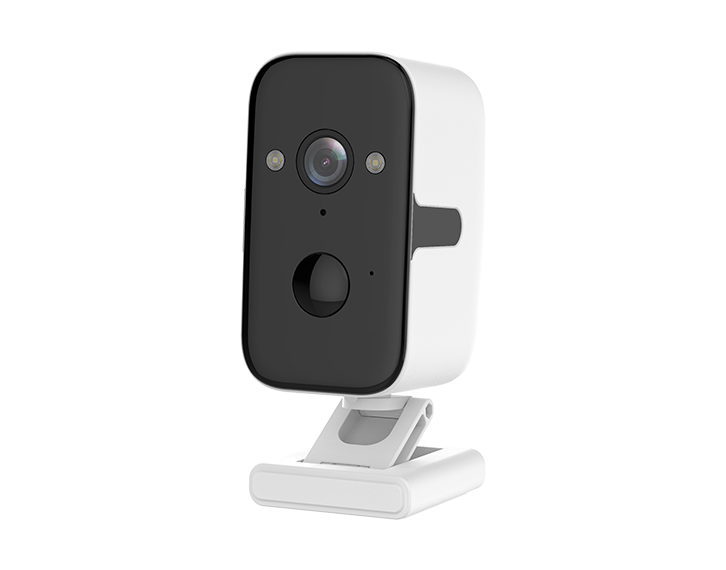

BW6-H
VeePai cloud platform is a multi-functional smart platform under VeePai that integrates cloud storage, cloud control and other functions.
Contact Us
| Sorts | Type | Parameters |
| System | Operating system | Linux |
| Online visitor | Supports 4 visitors viewing at the same time. | |
| APP | O-KAM Pro | |
| Collection | CPU | T23 |
| Memory | 512Mb | |
| Image sensor | GC2083, 200W,1/3 CMOS | |
| Minimum illumination | 0.8Lux/F1.4 (Color mode), 0.3Lux/F1.4 (B&W mode) | |
| Lens | Standard lens diameter 14mm | |
| Sensor performance | Supports automatic white balance, automatic gain control, and automatic backlight compensation. | |
| Viewing angle | Diagonal 130° | |
| Video | Night Vision | Black and white night vision, dual filter automatic switching, 6*850nm infrared lights, night vision 5-10 meters |
| Compression standard | H.264 /MJPEF/JPEG | |
| Data rate | Main stream: 1296P/15fps, sub stream: 360P/15fps | |
| IR control | When the IR night vision function is enabled, IR and ICR are automatically detected; when the IR night vision function is disabled, IR is off and ICR is fixed in the day vision mode. | |
| Bit rate | CBR/VBR two rate control modes, with an output rate range of 128 to 4096kbps. | |
| Image adjustment | Brightness, contrast, vertical, horizontal adjustable, OSD display. | |
| Audio | Input | Built-in-38dB microphone |
| Output | Built-in 8Ω1W speaker | |
| Sampling frequency/bit width | 8KHz/16bit | |
| Compression standard/Bit Rate | G711A | |
| AI | Humanoid detection | Humanoid detection, filtering invalid alarm events. |
| Area detection | Customize detection zones, only monitor areas that matter. | |
| Intelligent notification sound | Set different notification sounds for different devices, so that you can accurately determine which device is triggered. | |
| Intelligent alarm sound | Set different alarm sounds based on different scenarios. | |
| More AI functions (under testing) | Pets, vehicles, packages, etc | |
| Network | Network protocol | TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P,IPV4 etc. |
| Wireless network | IEEE802.11b/g/n | |
| Wireless frequency | 2.4~2.4835GHz | |
| Wireless security encryption | 64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption | |
| Wireless connection method | AP hotspot, Scan QR code, Bluetooth | |
| Key | Key 1 | On/Off |
| Reset key | Long press to restore factory settings | |
| Storage | External TF card | Supports T-Flash cards (up to 256GB) |
| Cloud storage | Free cloud storage，1 day loop(China)，3-day loop( Overseas) | |
| Alarm | Detection | PIR infrared human movement detection |
| Physical Indicators | Charging voltage | DC5V±5% |
| Power supply | Built-in 5000mAh battery, 2*18650, Supports external 5V solar panel | |
| Power consumption | Sleep current 260uA, working current: 230-360mA | |
| Operating condition | Temperature: -10～55℃; Humidity: ＜90% | |
| Weight | Gross weight: （Note: in kind prevail） | |
| Size | 79*68*88.5mm | |
| What's in the box | Camera*1, bracket*1,type-C cable*1, manual*1.(optional solar panel * 1 and solar panel bracket * 1 ) |
